Vertical Disc Mixing Feeder Machine

Short Description:

The Vertical Disc Mixing Feeder Machine is used to evenly feeding the raw materials to more than two equipment in the fertilizer production process. It has the characteristics of compact structure, uniform feeding and beautiful appearance. There are more than two discharge ports at the bottom of the disc, which makes the unloading quite convenient.


Product Detail

Product Tags

Introduction

What is the Vertical Disc Mixing Feeder Machine used for?

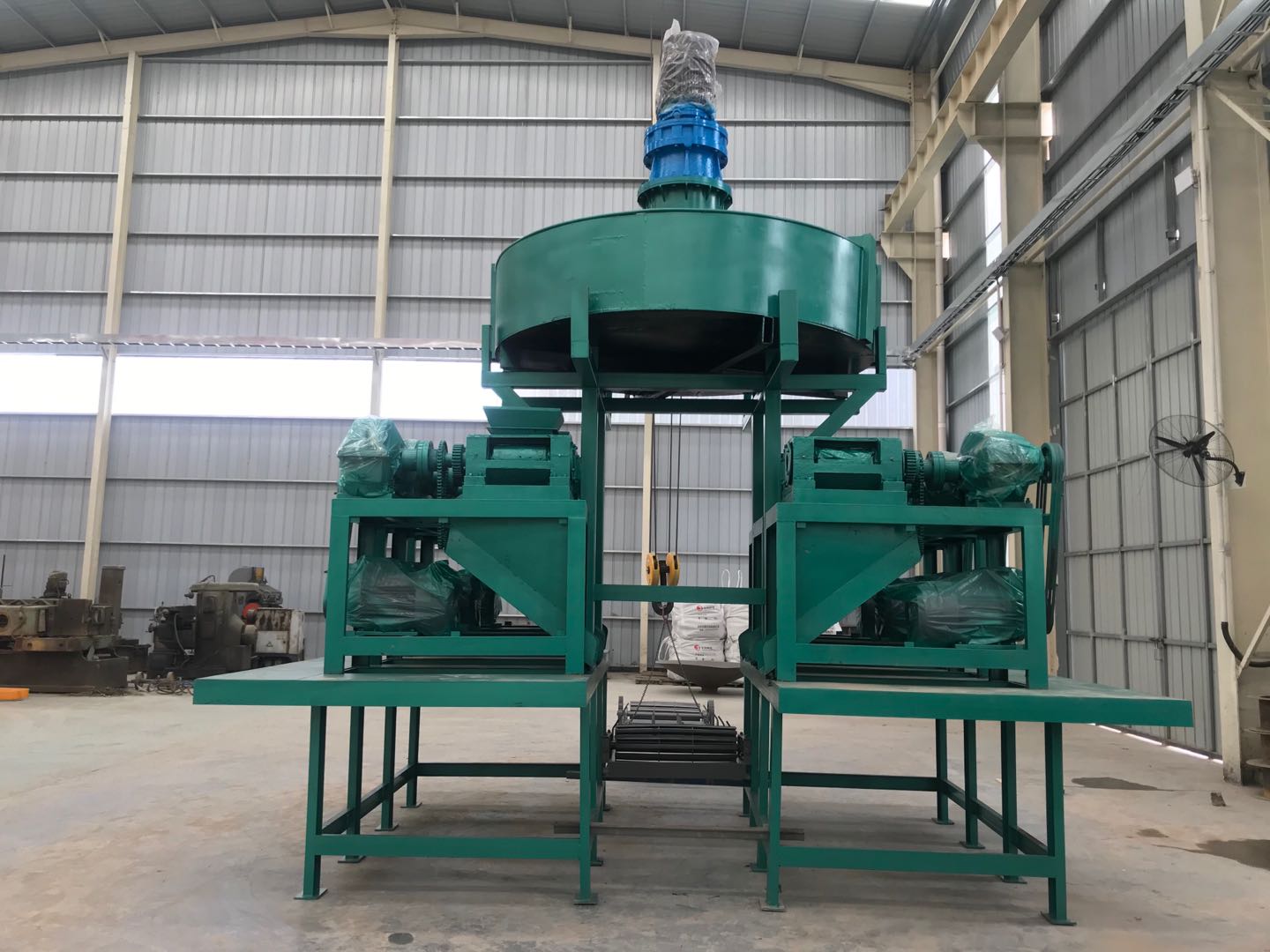

The Vertical Disc Mixing Feeder Machine is also called disc feeder. The discharge port can be controlled flexible and the discharge quantity can be adjusted according to the actual production demand. In the compound fertilizer production line, the Vertical Disc Mixing Feeder Machine is often used in combination with several roller extrusion granulators to provide even material feeding, that greatly improving the feeding efficiency and production capacity

Features of Vertical Disc Mixing Feeder Machine

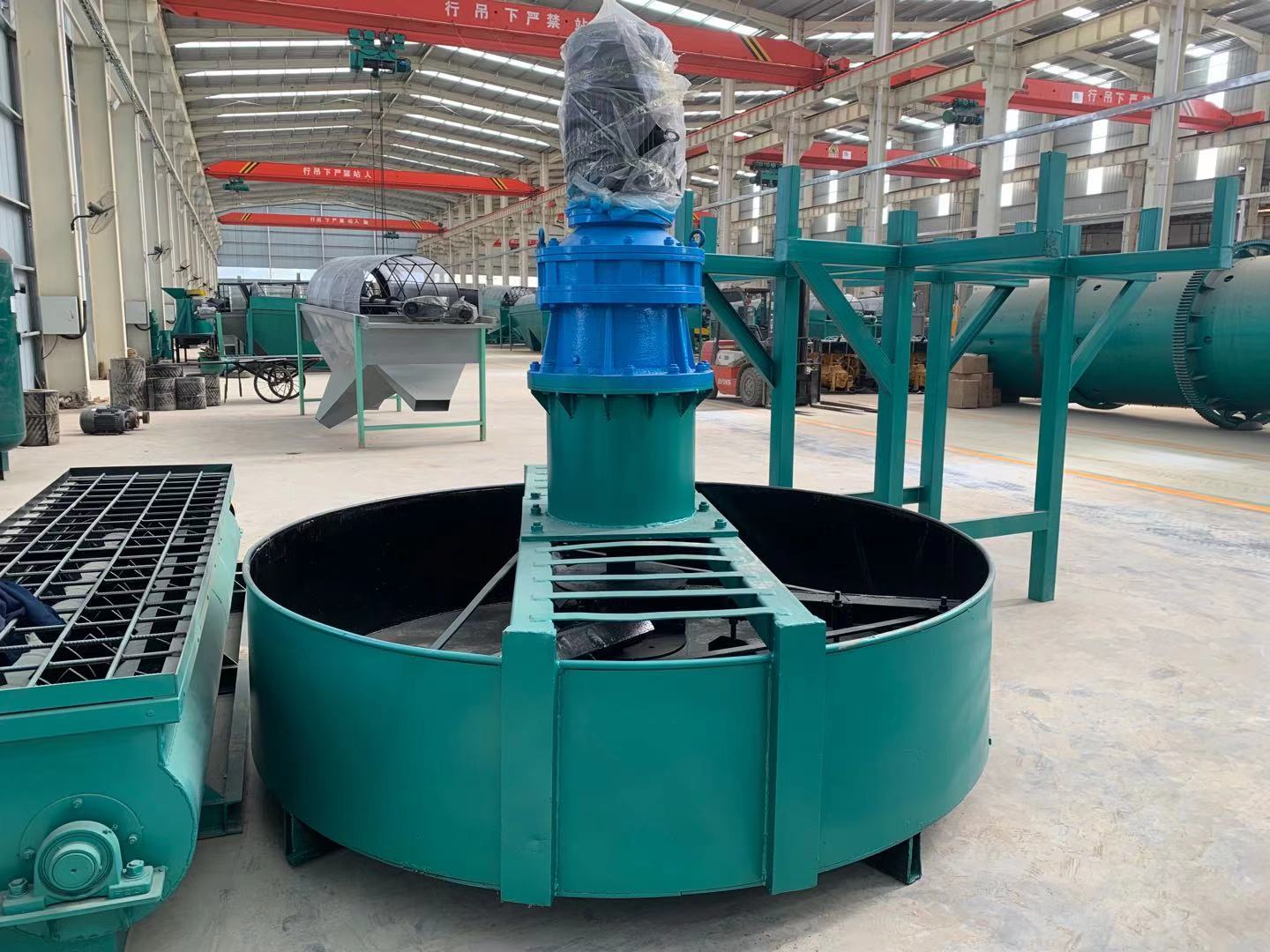

This machine is a new vertical disc mixing feeder, which consists of mixing plate, discharge port, mixing arm, rack, gearbox and transmission mechanism. We adopt special wearing alloy for the spiral blade for longer service time. The disc mixing feeder feeds from the top and discharge from the bottom with reasonable structure. The characteristic of the machine is that the output shaft end of the reducer drives the stirring main shaft to operate, and the stirring shaft has fixed stirring teeth, so the stirring shaft drives the stirring teeth to mixing the material sufficiently and makes the material flow out evenly. The discharge port can be opened according to needs to control the flow of materials to ensure the smooth production of the whole process.

Application of Vertical Disc Mixing Feeder Machine

It is a new type mixing & feeding equipment for continuous running. It is mainly used in the fertilizer processing industry, and we supply the turn-key basis fertilizer project start from design, producing, installation, debugging and technical training. It can also be used in chemical, metallurgy, mining, building materials and other industries.

Performance Characteristics

(1) The Vertical Disc Mixing Feeder Machine has long service life, energy saving, small volume, fast stirring speed and continuous working.

(2) The inside of the disc can be lined with polypropylene plate or stainless steel plate. It is not easy to stick material and wear resistance.

(3) The cycloid pinwheel reducer makes the machine has the characteristics of compact structure, convenient operation, uniform feeding, and convenient discharge and transportation.

(4) The Vertical Disc Mixing Feeder Machine feeds the material from top, discharge from bottom, which is reasonable.

(5) The sealing between each combination surface is tight, so the machine runs smoothly.

Vertical Disc Mixing Feeder Machine Video Display

Vertical Disc Mixing Feeder Machine Technical Parameter

Model

Disc

Diameter (mm)

Edge Height (mm)

Speed (r/min)

Power (kw)

Dimensions (mm)

Weight (kg)

YZPWL1600

1600

250

12

5.5

1612×1612×968

1100

YZPWL1800

1800

300

10.5

7.5

1900×1812×968

1200

YZPWL2200

2200

350

10.5

11

2300×2216×1103

1568

YZPWL2500

2500

400

9

11

2600×2516×1253

1950
