Rubber Belt Conveyor Machine

Short Description:

The Rubber Belt Conveyor Machine can be used to transport both bulk materials and finished products. It can also be worked with various industrial production processes, and form a rhythmic production line.


Product Detail

Product Tags

Introduction

What is the Rubber Belt Conveyor Machine used for?

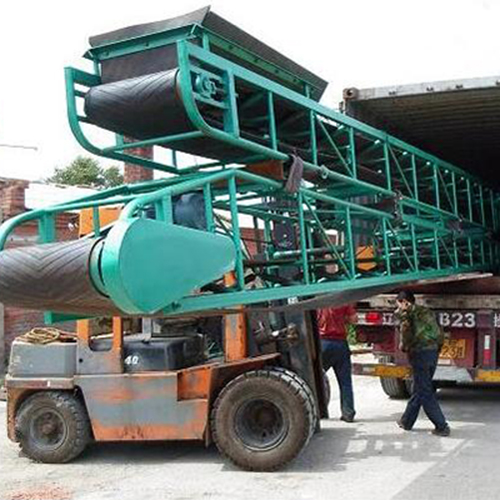

The Rubber Belt Conveyor Machine is used for the packing, loading and unloading of the goods in the wharf and warehouse. It has the advantages of compact structure, simple operation, convenient movement, beautiful appearance.

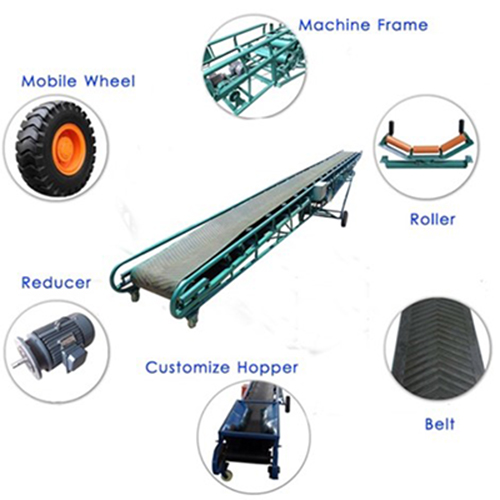

Rubber Belt Conveyor Machine is also suitable for fertilizer production and transportation. It is a friction-driven machine that transports materials continuously. It mainly consists of rack, conveyor belt, roller, tension device and transmission device.

Work Principle of Rubber Belt Conveyor Machine

A material transfer process is formed between the initial feed point and the final discharge point on a certain conveying line. It can not only carry out the transportation of scattered materials, but also carry out the transportation of finished goods. In addition to simple material transportation, it can also cooperate with the requirements of the technological process of various industrial enterprises to form a rhythmical flow operation transportation line.

Features of Rubber Belt Conveyor Machine

1. Advanced and simple in structure, easy to maintain.

2. High transfer capacity and long transfer distance.

3. Widely used in mining, metallurgical and coal industry to transfer sandy or lump material, or packaged material.

4. It is a very important component of nonstandard machinery in special situation.

5. It can be customized.

Rubber Belt Conveyor Machine Video Display

Rubber Belt Conveyor Machine Model Selection

Belt Width(mm)

Belt Length(m) / Power(kw)

Speed(m/s)

Capacity(t/h)

YZSSPD-400

≤12/1.5

12-20/2.2-4

20-25/4-7.5

1.3-1.6

40-80

YZSSPD-500

≤12/3

12-20/4-5.5

20-30/5.5-7.5

1.3-1.6

60-150

YZSSPD-650

≤12/4

12-20/5.5

20-30/7.5-11

1.3-1.6

130-320

YZSSPD-800

≤6/4

6-15/5.5

15-30/7.5-15

1.3-1.6

280-540

YZSSPD-1000

≤10/5.5

10-20/7.5-11

20-40/11-22

1.3-2.0

430-850
