Rotary Fertilizer Coating Machine

Short Description:

Organic & Compound Granular Fertilizer Rotary Coating Machine is an equipment for coating pellets with special powder or liquid. The coating process can effectively prevent the caking of fertilizer and maintain nutrients in the fertilizer.


Product Detail

Product Tags

Introduction

What is the Granular Fertilizer Rotary Coating Machine?

Organic & Compound Granular Fertilizer Rotary Coating Machine Coating machine is specially designed on the internal structure according to the process requirements. It is an effective fertilizer special coating equipment. The use of coating technology can effectively prevent the agglomeration of fertilizers and achieve a slow-release effect. The driving shaft is driven by the reducer while the main motor drives the belt and pulley, which twin-gear are engaged with the big gear ring on the drum and rotates in the back direction. Feeding from the inlet and discharging from the outlet after mixing through the drum to achieve continuous production.

1

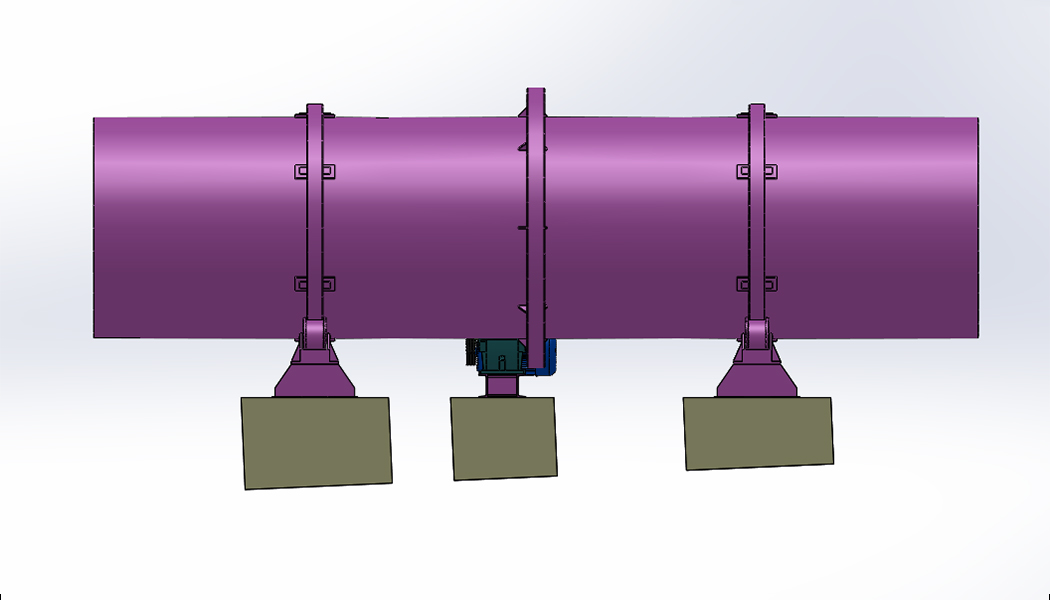

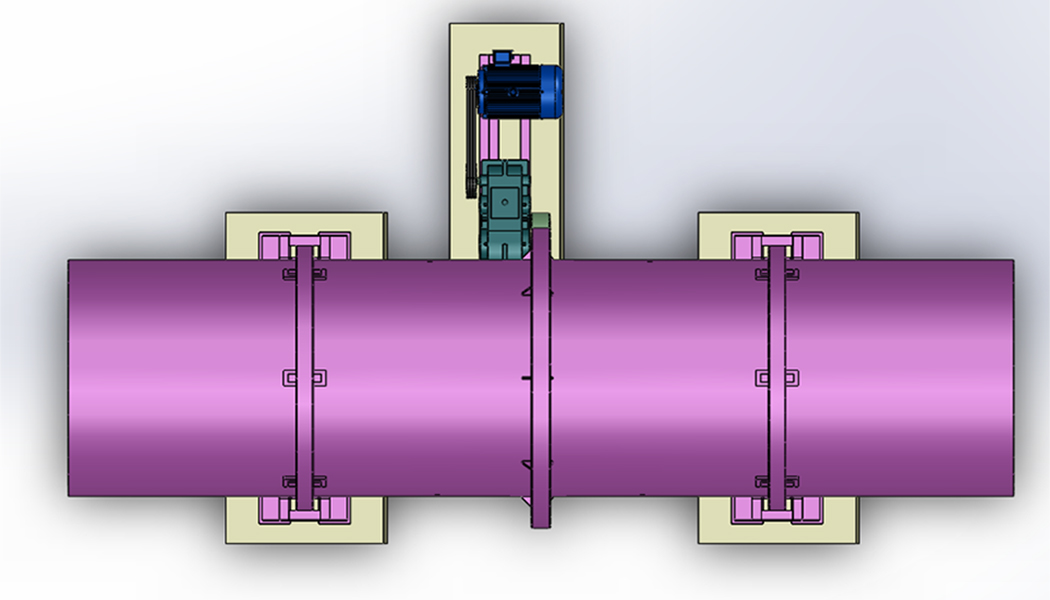

Structure of Granular Fertilizer Rotary Coating Machine

The machine can be divided into four parts:

a. Bracket part: the bracket part includes the front bracket and the rear bracket, which are fixed on the corresponding foundation and used to support the whole drum for positioning and rotating. Bracket is composed of bracket base, support wheel frame and support wheel. The height and Angle of the machine can be adjusted by adjusting the spacing between two supporting wheels on the front and rear brackets during installation.

b. Transmission part: the transmission part provides power needed for the whole machine. Its components include transmission frame, motor, triangular belt, reducer and gear transmission etc., The connection between reducer and gear can use direct or coupling according to size of the driving load.

c. The drum: the drum is the working part of the whole machine. There is a roller belt for supporting and a gear ring for transmitting on the outside of the drum, and a baffle is welded inside to guide the materials flowing slowly and coating evenly.

d. Coating part: Coating with powder or coating agent.

Features of Granular Fertilizer Rotary Coating Machine

(1) The powder spraying technology or liquid coating technology has made this coating machine helpful to prevent compound fertilizers from clotting.

(2) The mainframe adopts polypropylene lining or acid-resistant stainless steel lining plate.

(3) According to special technological requirements, this rotary coating machine is designed with a special inner structure, so it is effective and special equipment for compound fertilizers.

Granular Fertilizer Rotary Coating Machine Video Display

Granular Fertilizer Rotary Coating Machine Model Selection

model

Diameter (mm)

Length   (mm)

Dimensions after installation(mm)

Speed (r/min)

Power   (kw)

YZBM-10400

1000

4000

4100×1600×2100

14

5.5

YZBM-12600

1200

6000

6100×1800×2300

13

7.5

YZBM-15600

1500

6000

6100×2100×2600

12

11

YZBM-18800

1800

8000

8100×2400×2900

12

15
