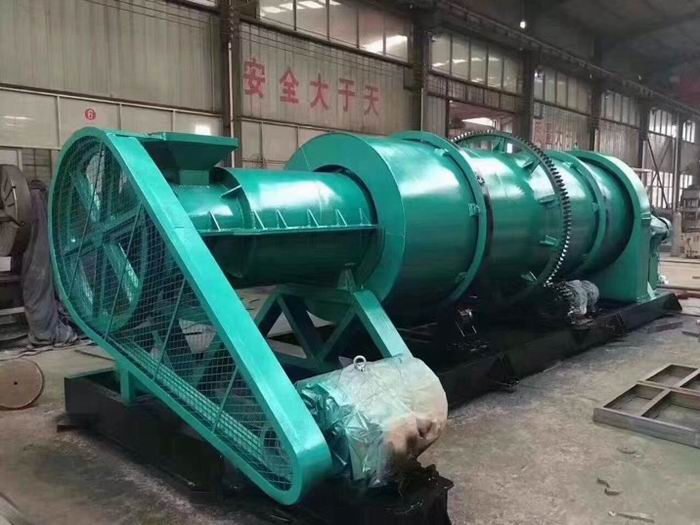

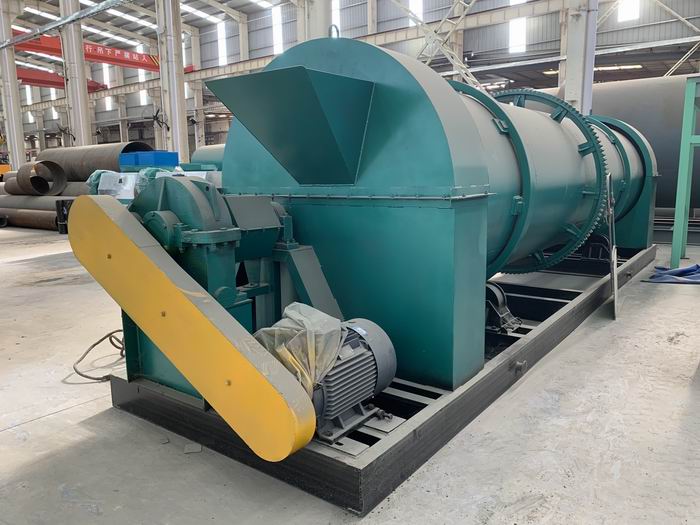

New Type Organic & Compound Fertilizer Granulator Machine

Short Description:

The New Type Organic & NPK Compound Fertilizer Granulator Machine is a kind of machine for processing powdery raw materials into granules, suitable for high nitrogen content products such as organic and inorganic compound fertilizer.


Product Detail

Product Tags

Introduction

What's the New Type Organic & Compound Fertilizer Granulator Machine?

The New Type Organic & Compound Fertilizer Granulator Machine makes use of the aerodynamic force generated by the high-speed rotating mechanical stirring force in the cylinder to make the fine materials continuous mixing, granulation, spheroidization, extrusion, collision, compact and strengthen, finally become into granules. The machine is widely used in the production of high nitrogen content fertilizer such as organic and inorganic compound fertilizer.

Working Principle

The New Type Organic & Compound Fertilizer Granulator Machine use high-speed rotating mechanical force to make the fine powder materials continuous mixing, granulating, spheroidizing and density, so as to achieve the goal of the granulation. The shape of particles is spherical, the spherical degree is 0.7 or higher, the particle size is generally between 0.3 and 3 mm and the granulating rate is up to 90% or higher. The size of particle diameter can be adjusted according to the mixture quantity and spindle rotational speed, generally, the lower the mixing volume, the higher the rotational speed, the smaller the particle size.

Advantages of New Type Organic & Compound Fertilizer Granulator Machine

  • High Granulation Rate
  • Low Energy Consumption
  • Simple Operation
  • The shell is made of thickened spiral steel tube, which is durable and never deforms.

Organic & Compound Fertilizer Granulation Production Line

The capacity of New Type Organic & Compound Fertilizer Granulation Production Line ranges from 10,000 tons per year to 300,000 tons per year.

Production Flow

The components of complete fertilizer production line

1) Electronic belt scale

2) Mixing machine or grinding machine, various options based on process requirements

3) Belt conveyor and bucket elevator

4) Rotary granulator or disc granulator, various options base on process requirements

5) Rotary dryer machine

6) Rotary cooler machine

7) Rotary sieve or vibrating sieve

8) Coating machine

9) Packing machine

Characteristics of Organic & Compound Fertilizer Granulation Production Line

1) The whole Granulation Production Line is our mature products, they are running stable, the quality of them is high, and they are easy to maintenance and repair.

2) The rate of being ball is high, outer recycle materials is few, the comprehensive energy consumption is low, no pollution and strong adaptability.

3) The setting of the whole production line is reasonable and within advanced technology, it could improve production efficiency, reducing the production cost and the production scale could be controlled easily.

New Type Organic & Compound Fertilizer Granulator Machine Video Display

New Type Organic & Compound Fertilizer Granulator Machine Model Selection

Model

Bearing Model

Power (KW)

Overall Size (mm)

YZZLHC1205

22318/6318

30/5.5

6700×1800×1900

YZZLHC1506

1318/6318

30/7.5

7500×2100×2200

YZZLHC1807

22222/22222

45/11

8800×2300×2400
