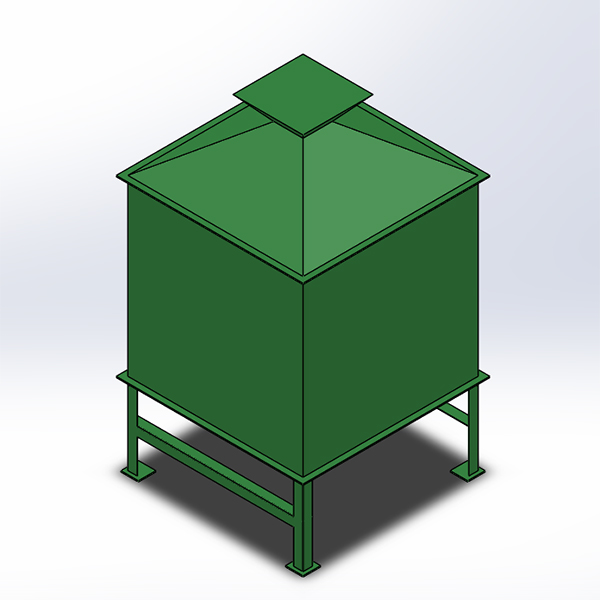

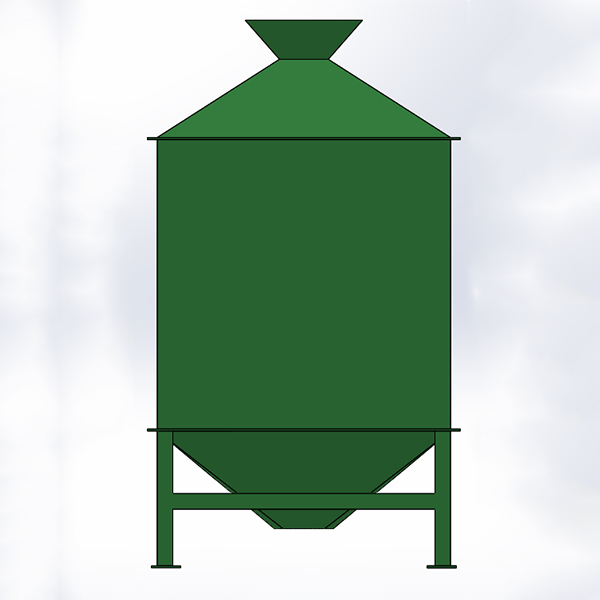

Counter Flow Cooling Machine

Short Description:

Counter Flow Cooling Machine is a new generation of cooling equipment with a unique cooling mechanism. The cooling wind and the high moisture materials are doing reverse movement to achieve gradually and uniformly cooling.


Product Detail

Product Tags

Introduction

What is the Counter Flow Cooling Machine?

The new generation of Counter Flow Cooling Machine researched and developed by our company, the material temperature after cooling is not higher than the room temperature 5 ℃, the precipitation rate is not less than 3.8%, for the production of high-quality pellets, prolong the storage time of pellets and improve the economic benefits played a important role. It is a model widely used abroad and is an advanced replacement of traditional cooling equipment.

Work Principle of Counter Flow Cooling Machine

When the particles from the drying machine pass through the Counter Flow Cooling Machine, they come into contact with the surrounding air. As long as the atmosphere is saturated, it will take away water from the surface of the particles. The water inside of the particles is moved to the surface via the capillaries of fertilizer granules and then carried away by evaporation, so the fertilizer granules get cooled. At the same time, the heat absorbed by the air, which improves the water carrying capacity. The air is continuously discharged by the fan to take away the heat and moisture of the fertilizer granules in the cooler.

Application of Counter Flow Cooling Machine

Mainly used for cooling high temperature granular materials after granulation.  The machine has a unique cooling mechanism. The cooling air and the high temperature and high humidity materials move in the opposite direction, so that the materials are gradually cooled from top to bottom, avoiding the surface cracking of the materials caused by the general vertical cooler due to the sudden cooling.

Advantages of Counter Flow Cooling Machine

The Counter Flow Cooling Machine has good cooling effect, high degree of automation, low noise, simple operation, and low maintenance. It is a model widely used abroad and is an advanced replacement cooling equipment.

  Superiority:

 【1】The temperature of the cooled particles is not higher than +3 ℃~ +5 ℃ of room temperature; precipitation = 3.5%;

 【2】It has the unique function of automatic pellet discharge when shutting down;

 【3】Uniform cooling and low degree of crushing;

 【4】Simple structure, low operating cost and small space occupation;

Counter Flow Cooling Machine Video Display

Counter Flow Cooling Machine Model Selection

Model

NL 1.5

NL 2.5

NL 4.0

NL 5.0

NL 6.0

NL8.0

Capacity (t/h)

3

5

10

12

15

20

Cooling volume (m)

1.5

2.5

4

5

6

8

Power (Kw)

0.75+0.37

0.75+0.37

1.5+0.55

1.5+0.55

1.5+0.55

1.5+0.55
