Vertical Chain Fertilizer Crusher Machine

Short Description:

The Vertical Chain Fertilizer Crusher is one of the most common equipment in compound fertilizer industry. The machine adopts the high strength and wear-resisting carbide chain with synchronous rotating speed, which is suitable for crushing raw materials and return materials.


Product Detail

Product Tags

Introduction

What is the Vertical Chain Fertilizer Crusher Machine?

The Vertical Chain Fertilizer Crusher is one of the most commonly used crushing equipment in the compound fertilizer industry. It has a strong adaptability for the material with high water content and can feeding smoothly without blocking. The material enters from the feed port and collides with the high-speed rotating chain in the housing. After colliding, the material is squeezed and broken, and then collides with the hammerhead after hitting the inner wall of the housing. In this way, it becomes powders or particles below 3mm are discharged after several collisions.

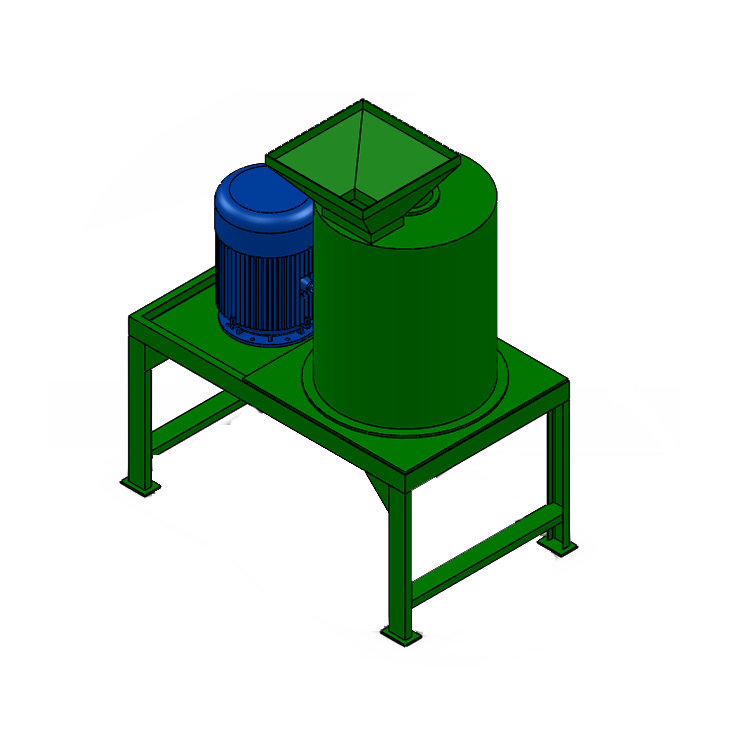

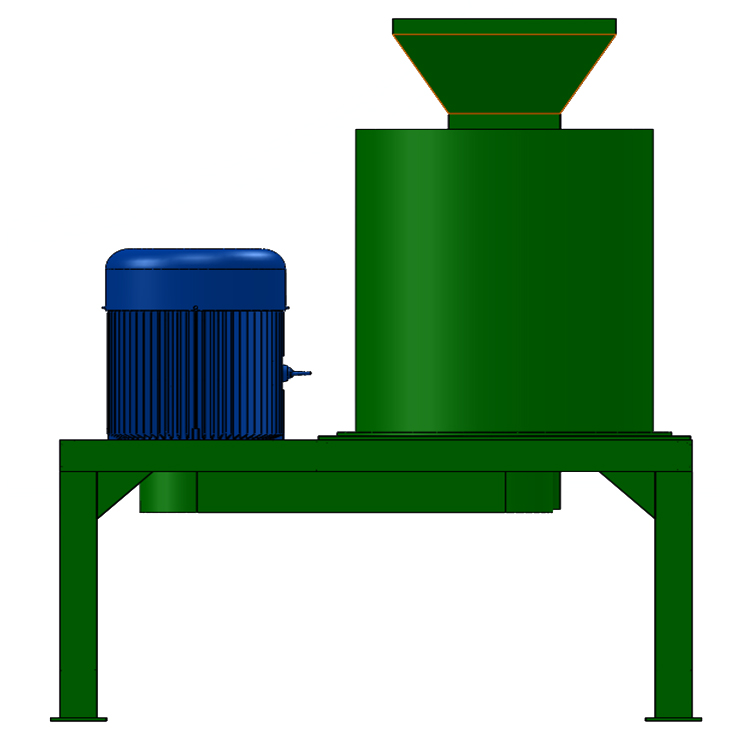

Structure of Vertical Chain Fertilizer Crusher Machine

In the process of crushing, the Vertical Chain Fertilizer Crusher use synchronous speed of high-strength wear-resistant carbide chain plate, and reasonable design for inlet and outlet, so that the finished material is in uniform shape and keep no adhesion in the machine. This type of crusher adopting the latest technology and high-quality steel, system optimization design, so it is of large yield and high reliability.

Application of Vertical Chain Fertilizer Crusher Machine

LP series Vertical Chain Fertilizer Crusher is suitable for crushing the large material on compound fertilizer production line, but also widely used in chemical industry, building materials, mining and other industries.

Advantages of Vertical Chain Fertilizer Crusher Machine

  • Vertical Chain Fertilizer Crusher is the one of horizontal cage mill for middle size.
  • Vertical Chain Fertilizer Crusher have easy structure, and little yard, and Easy maintenance.
  • Vertical Chain Fertilizer Crusher Machine have a good effect, smooth operation, easy clean.
  • It is the enemy of many high hardness materials.

Vertical Chain Fertilizer Crusher Machine Video Display

Vertical Chain Fertilizer Crusher Machine Model Selection

Model

Maximum Feeding Size (mm)

Crushed Particle size (mm)

Motor Power (KW)

Production Capacity (t/h)

YZFSLS-500

≤60

Φ<0.7

11

1-3

YZFSLS-600

≤60

Φ<0.7

15

3-5

YZFSLS-800

≤60

Φ<0.7

18.5

5-8

YZFSLS-1000

≤60

Φ<0.7

37

8~10
