Rotary Single Cylinder Drying Machine in Fertilizer Processing

Short Description:

Rotary Single Cylinder Drying Machine is widely used to dry materials in industries like cement, mine, construction, chemical, food, compound fertilizer, etc.


Product Detail

Product Tags

Introduction

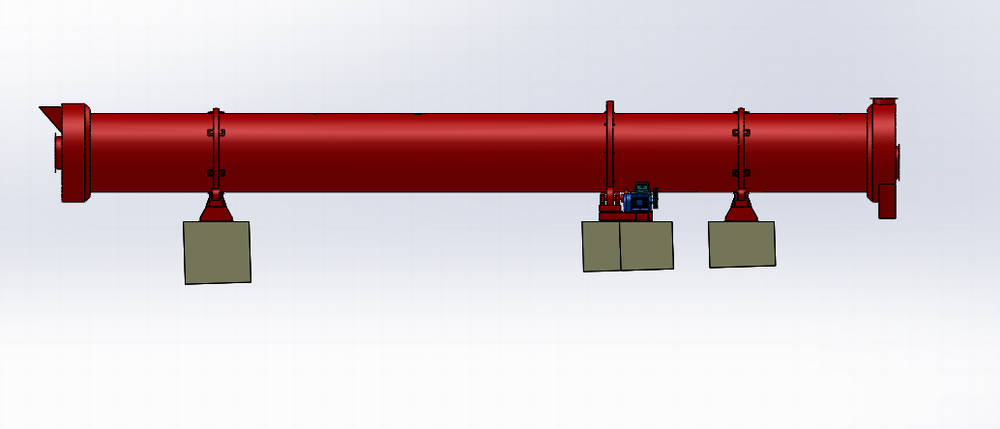

What is the Rotary Single Cylinder Drying Machine?

The Rotary Single Cylinder Drying Machine is a large-scale manufacturing machine used to dry shaped fertilizer particles in fertilizer making industry. It is one of the key equipment. The Rotary Single Cylinder Drying Machine is to dry organic fertilizer particles with a water content of 50%~55% after granulation to a water content ≦30% to meet the standard of organic fertilizer. When used for long-term storage or as a raw material for further processing, the moisture content must be ≦13%.

1

What is the Rotary Single Cylinder Drying Machine used for?

Rotary Single Cylinder Drying Machine is widely used for drying slag limestone, coal powder, slag, clay, etc. The Drying Machine can also be used in building materials, metallurgy, chemical, and cement industry.

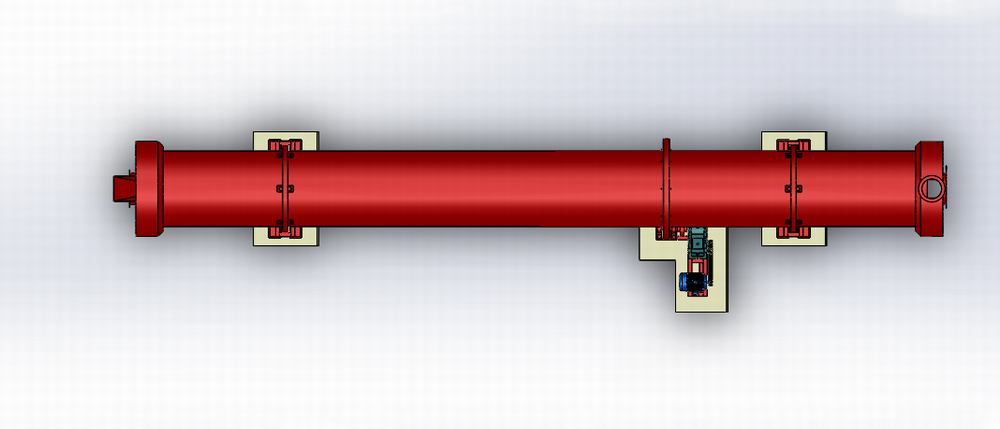

Work Principle of Rotary Single Cylinder Drying Machine

Materials are sent to hopper of Rotary Single Cylinder Drying Machine by belt conveyor or bucket elevator. The barrel is installed with slope to horizontal line. Materials enter the barrel from the higher side, and hot air enters the barrel from the lower side, materials and hot air mix together. Materials go to the lower side by gravity when the barrel rotates. Lifters on the inner side of barrel lift materials up and down to make materials and hot air mix completely. So drying efficiency is improved.

What are the features of Rotary Single Cylinder Drying Machine?

* Reasonable structure, excellent fabrication, high production, low consumption, economical and environmental, etc.
* The special internal structure of rotary Drying Machine ensure the wet materials that will not block and stick the Drying Machine.
* Rotary Drying Machine can resist the high temperature so that it can dry the material quickly and have a large capacity.
* Rotary Drying Machine is easy to operate and maintain.
* Rotary Drying Machine can use coal, oil, gas, biomass as fuel.

Rotary Single Cylinder Drying Machine Video Display

Rotary Single Cylinder Drying Machine Model Selection

This series of Rotary Single Cylinder Drying Machine have a variety of models, which can be selected according to the actual output, or customized.

The main technical parameters are shown in the following table:

Model

Diameter (mm)

Length (mm)

Dimensions (mm)

Speed (r/min)

Motor



Power (kw)

YZHG-0880

800

8000

9000×1700×2400

6

Y132S-4

5.5

YZHG-10100

1000

10000

11000×1600×2700

5

Y132M-4

7.5

YZHG-12120

1200

12000

13000×2900×3000

4.5

Y132M-4

7.5

YZHG-15150

1500

15000

16500×3400×3500

4.5

Y160L-4

15

YZHG-18180

1800

18000

19600×3300×4000

4.5

Y225M-6

30

YZHG-20200

2000

20000

21600×3650×4400

4.3

Y250M-6

37

YZHG-22220

2200

22000

23800×3800×4800

4

Y250M-6

37

YZHG-24240

2400

24000

26000×4000×5200

4

Y280S-6

45
