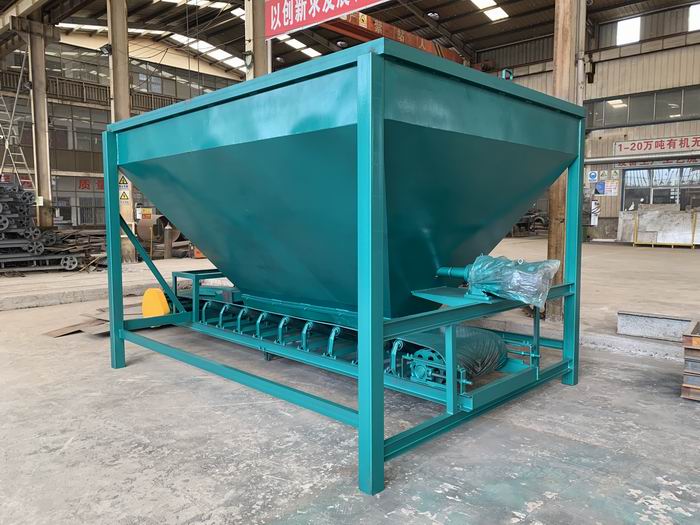

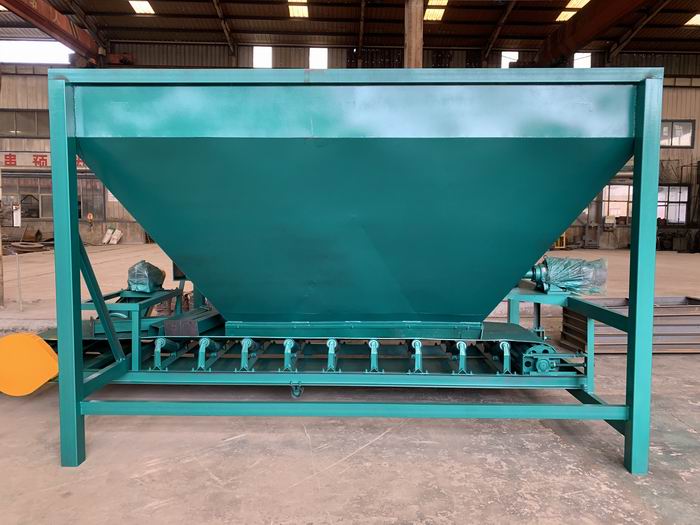

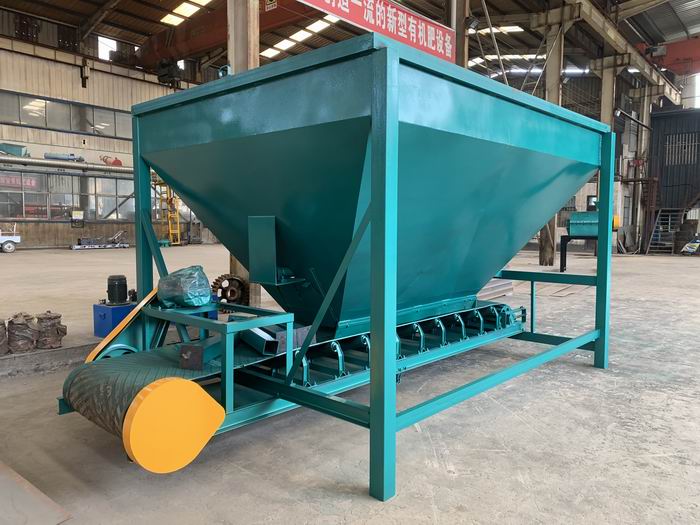

Static Fertilizer Batching Machine

Short Description:

The Multiple Hoppers Single Weigh Static Organic & Compound Fertilizer Batching Machine is mainly suitable for mixing, batching and feeding of 3-8 kinds of materials. The system is automatically controlled by a computer scale. The pneumatic valve is used to control the material supply in the main bin. The material is mixed in the mixing bin and sent automatically by the belt conveyor.


Product Detail

Product Tags

Introduction

What is the Static Fertilizer Batching Machine?

Static automatic batching system is an automatic batching equipment that can go work with BB fertilizer equipment, organic fertilizer equipment, compound fertilizer equipment and compound fertilizer equipment, and can complete the automatic ratio according to customer needs.

In a complete fertilizer production line, it is to be designed and used to dose and batch all kinds of raw materials. And mostly it is to be equipped in the organic fertilizer production line or NPK compound fertilizer production line and other series fertilizer production plant. Generally, Static automatic batching machines are used for accurate weighing and mixing various raw materials, replacing manual and volume measurement.

Features of Static Fertilizer Batching Machine

The static automatic batching machine has the characteristics of high measurement accuracy, fast distribution and high automation degree, which is one of the main parts of the complete fertilizer production equipment.

(1) Fully automatic batching and dosing system

(2) Various capacity from 5 to 100 tons per hour

(3) The Automatic Batching Machine can work with 3 to 10 kinds of raw materials

(4) High batching accuracy

(5) Optional according to the process: parallel belt, baffle structure, skirt edge belt structure

(6) Unique anti-running belt

(7) The batching system completes the ingredients of each material according to the setting

Static Fertilizer Batching Machine Video Display

Static Fertilizer Batching Machine Model Selection

The feeding capacity is 0.05m /h-1000m/h, and the conveyor belt width is 500mm-1800mm. The central distance of the roller is 1000mm-8000mm. This Static Fertilizer Batching Machine can be customized according to user requirements.

Model

Capacity

Positions

Power (KW)

Dimensions

YZPLZ1000

500-750

3-8

3-11

(3100-8100) ×1200×1800

YZPLZB1000

500-750

3-8

3-11

(3100-8100) ×1300×2500

YZPLZ1200

750-1000

3-8

3-11

(3700-9700) ×1300×2150

YZPLZB1200

750-1000

3-8

3-11

(3700-9700) ×1400×2850

YZPLZ1500

1000-1500

3-8

3-11

(4500-12200) ×1600×3000
