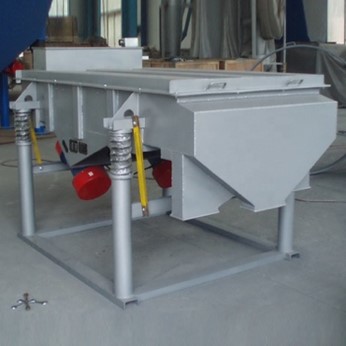

Linear Vibrating Screener

Short Description:

The Linear Vibrating Screener uses powerful vibrating source from the vibration-motor, the materials are shake on the screen and move forward in a straight line.


Product Detail

Product Tags

Introduction

What is the Linear Vibrating Screening Machine?

The Linear Vibrating Screener (Linear Vibrating Screen) uses vibration motor excitation as the vibration source to make the material shake up on the screen and moves forward in a straight line. The material enters the feeding port of the screening machine evenly from the feeder.   Several sizes of oversize and undersize are produced by a multi-layer screen and are discharged from respective outlets.

Work Principle of Linear Vibrating Screening Machine

When the linear screen is working, the synchronous rotation of the two motors causes the vibration exciter to generate a reverse excitation force, forcing the screen body to move the screen longitudinally, so that the material on the material is excited and periodically throws a range. Thereby completing the material screening operation. The linear vibrating screen is driven by a double-vibration motor. When the two vibrating motors are synchronously and reversely rotated, the exciting force generated by the eccentric block cancels each other in the lateral direction, and the combined excitation force in the longitudinal direction is transmitted to the entire screen. On the surface, therefore, the movement path of the sieve machine is a straight line. The direction of the exciting force has an inclination angle with respect to the screen surface. Under the combined action of the exciting force and the self-gravity of the material, the material is thrown up and jumped forward in a linear motion on the screen surface, thereby achieving the purpose of screening and classifying the material.

Advantages of Linear Vibrating Screening Machine

1. Good sealing and very little dust.

2. Low energy consumption, low noise and long service life of the screen.

3. High screening precision, large processing capacity and simple structure.

4. Fully enclosed structure, automatic discharge, more suitable for assembly line operations.

5. All parts of the screen body are welded by steel plate and profile (the bolts are connected between some groups). The overall rigidity is good, firm and reliable.

Linear Vibrating Screening Machine Video Display

Linear Vibrating Screening Machine Model Selection

Model

Screen Size

 (mm)

Length (mm)

Power (kW)

Capacity

(t/h)

Speed

 (r/min)

BM1000

1000

6000

5.5

3

15

BM1200

1200

6000

7.5

5

14

BM1500

1500

6000

11

12

12

BM1800

1800

8000

15

25

12
