Automatic Packaging Machine

Short Description:

With its “fast, accurate, stable”, the automatic packaging machine has wide quantitative range and high precision, match with the lifting conveyor and sewing machine to complete the last process in production line of commercial organic fertilizer and compound fertilizer.


Product Detail

Product Tags

Introduction

What is the Automatic Packaging Machine?

Packaging Machine for Fertilizer is used to packing fertilizer pellet, designed for quantitative packing of materials. It includes double bucket type and single bucket type. The machine has the characteristics of integrated structure, simple installation, easy maintain, and quite high quantitative accuracy which is below 0.2%.

With its "fast, accurate and stable" -- it has become the first choice for packaging in the fertilizer production industry.

1. Applicable packaging: suitable for knitting bags, sack paper bags, cloth bags and plastic bags, etc.

2. Material: 304 stainless steel is used in the contact part of the material, which has high corrosion resistance.

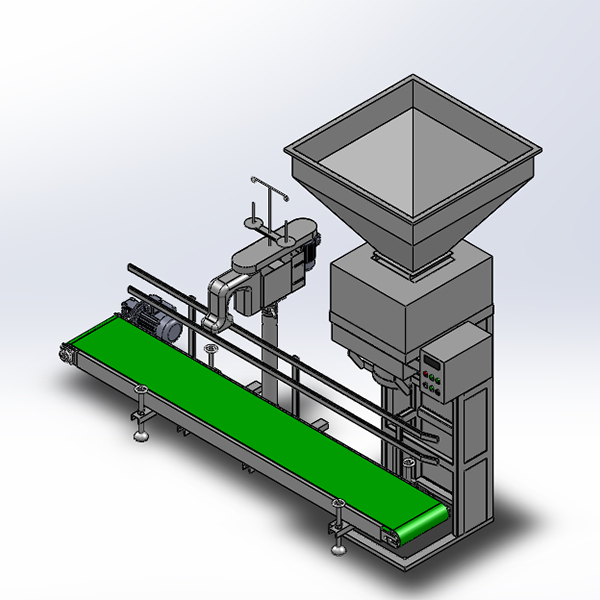

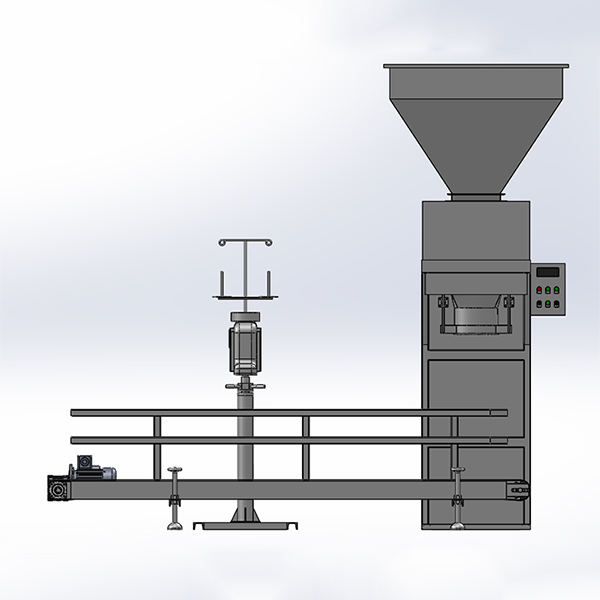

Structure of the Automatic Packaging Machine

Automatic packaging machine is a new generation of intelligent packaging machine developed by our company. It mainly consists of automatic weighing device, conveying device, sewing and packaging device, computer control and other four parts. The utility model has the advantages of reasonable structure, beautiful appearance, stable operation, energy saving and accurate weighing. Automatic packaging machine is also known as the computer quantitative packaging scale, the main machine adopts fast, medium and slow three-speed feeding and special feeding mixing structure. It uses advanced digital frequency conversion technology, sampling processing technology and anti-interference technology to realize automatic error compensation and correction.

Application of the Automatic Packaging Machine

1. Food categories: seeds, corn, wheat, soybeans, rice, buckwheat, sesame, etc.

2. Fertilizer categories: feed particles, organic fertilizer, fertilizer, ammonium phosphate, large particles of urea, porous ammonium nitrate, BB fertilizer, phosphate fertilizer, potash fertilizer and other mixed fertilizer.

3. Chemical categories: for PVC, PE, PP, ABS, polyethylene, polypropylene and other granular material.

4. Food categories: white, sugar, salts, flour and other food categories.

Advantages of Automatic Packaging Machine

(1) Fast packaging speed.

(2) The quantitative precision is below 0.2%.

(3) Integrated structure, easy maintenance.

(4) With conveyor sewing machine with a wide quantitative range and high accuracy.

(5) Adopt import sensors and import pneumatic actuators, which work reliably and maintain easily.

Features of Loading & Feeding Machine

1. It has big transport capacity and long transport distance.
2. Stable and highly efficient operation.
3. Uniform and continuous discharging
4. The size of the hopper and the model of the motor can be customized according to the capacity.

Automatic Packaging Machine Video Display

Automatic Packaging Machine Model Selection

Model YZBZJ-25F YZBZJ-50F
Weighing Range (kg) 5-25 25-50
Accuracy (%) ±0.2-0.5 ±0.2-0.5
Speed (bag/hour) 500-800 300-600
Power (v/kw) 380/0.37 380/0.37
Weigh (kg) 200 200
Overall Size (mm) 850×630×1840 850×630×1840
